86BLM直流無刷電機技術參數
型號 Series Model | 額定電壓 Voltage (V) | 額定電流 Rated Current (A) | 電阻 Phase Resistance (Ω) | 空載轉速No load speed (rpm) | 額定轉速Rated speed (rpm) | 額定轉矩 Rated torque (N.M) | 最大轉矩Torque Max (N.m) | 轉矩常數Torque constant(Nm/A) | 反電勢 Back-EMF constant V/Krpm | 功率 Power Watts(W) | 機長 Motor Length ( L mm) | 重量 Weight (kg) |
ST86BLM001 | 48 | 3.9 | 3.2 | 5000 | 3000 | 0.35 | 1.05 | 0.11 | 11.5 | 110 | 57 | 1.1 |
ST86BLM002 | 48 | 6.6 | 1.26 | 5000 | 3000 | 0.7 | 2.1 | 0.11 | 11.5 | 220 | 67 | 1.7 |
ST86BLM003 | 48 | 9.6 | 0.67 | 5000 | 3000 | 1.05 | 3.2 | 0.11 | 11.5 | 330 | 80 | 2.2 |
ST86BLM004 | 48 | 14 | 0.47 | 5000 | 3000 | 1.4 | 4.2 | 0.128 | 13.5 | 440 | 95 | 2.8 |

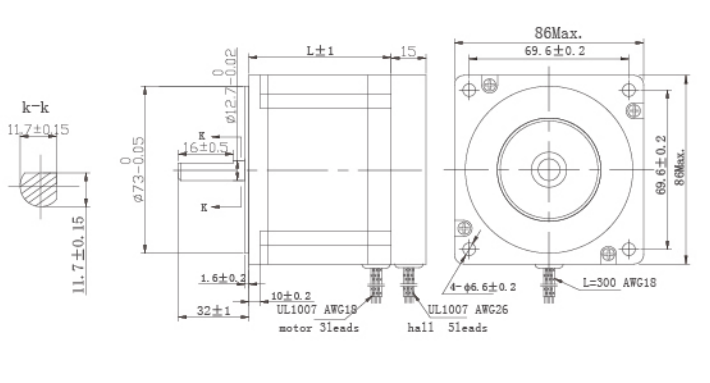

Dimensions(外形圖): unit=mm
